M54HCT04

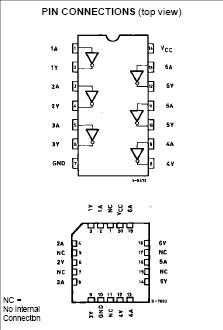

Pinout

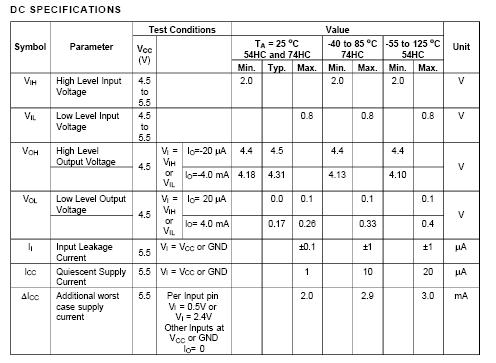

Specifications




Description

The M54/74HCT04 is a high speed CMOS INVERTER fabricated in silicon gate C2MOS technology. M54/74HCT04 has the same high speed performance of LSTTL combined with true CMOS low power consumption. The internal circuit is composed of 3 stages including buffered output, which gives high noise immunity and a stable output.
M54/74HCT04 All inputs are equipped with protection circuits against static discharge or transient excess voltage. This integrated circuit has input and output characteristic
that are fully compatible with 54/74 LSTTL logic families. M54HCT/74HCT devices are designed to directly interface HSC2MOS systems with  TTL  and   NMOScomponents. They are also plug in replacements for LSTTL devices giving a reduction of power consumption.
