M54HC74

Features: ·HIGH SPEED fMAX = 71 MHz (TYP.) AT VCC = 5 V· LOWPOWER DISSIPATION ICC = 4 mA (MAX.) at TA = 25 °C·HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) ·OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS ·SYMMETRICAL OUTPUT IMPEDANCE |IOH| = IOL = 4 mA (MIN.) ·BALANCEDPROPAGATION DELAYS tPLH = tPHL· W...

product image

M54HC74 Picture
See larger image
SeekIC No. : 004405947 Detail

M54HC74: Features: ·HIGH SPEED fMAX = 71 MHz (TYP.) AT VCC = 5 V· LOWPOWER DISSIPATION ICC = 4 mA (MAX.) at TA = 25 °C·HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) ·OUTPUT DRIVE CAPABILITY 10 LSTTL LOAD...

M54HC74 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54HC74
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·HIGH SPEED
  fMAX = 71 MHz (TYP.) AT VCC = 5 V
· LOWPOWER DISSIPATION
  ICC = 4 mA (MAX.) at TA = 25 °C
·HIGH NOISE IMMUNITY
  VNIH = VNIL = 28 % VCC (MIN.)
·OUTPUT DRIVE CAPABILITY
  10 LSTTL LOADS
·SYMMETRICAL OUTPUT IMPEDANCE
  |IOH| = IOL = 4 mA (MIN.)
·BALANCEDPROPAGATION DELAYS
  tPLH = tPHL
· WIDE OPERATING VOLTAGE RANGE
  VCC (OPR) = 2 V to 6 V
·PIN AND FUNCTION COMPATIBLE WITH 54/74LS74

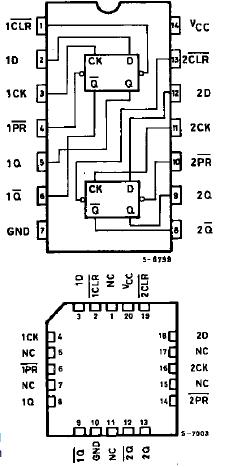

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage -0.5 to +7 V
VI DC Input Voltage -0.5 to VCC + 0.5 V
VO DC Output Voltage -0.5 to VCC + 0.5 V
IIK DC Input Diode Current ± 20 mA
IOK DC Output Diode Current ± 20 mA
IO DC Output Current ± 25 mA
ICC or IGND DC VCC or Ground Current ± 50 mA
PD Power Dissipation 500(*) mW
Tstg Storage Temperature -65 to +150 °C
TL Lead Temperature (10 sec) 300 °C

AbsoluteMaximumRatings are those values beyond whichdamage tothe device may occur. Functional operation under these condition isnotimplied.
(*) 500 mW: 65 derate to 300mWby 10mW/: 65 to85




Description

The M54/74HC74 is a high speed CMOS DUAL D TYPE FLOP WITH PRESET AND CLEAR fabricated in silicon gate C2MOS technology. It has the same high speed performance of LSTTL combined with trueCMOSlow power consumption. Asignal on the DINPUT is transferred to the QOUTPUTduring the positive going transition of the clock pulse. CLEAR and PRESET are independent of the clock and accomplished by alow on the appropriate input. All inputs are equipped with protection circuits against static discharge and transient excess voltage.
