M54HC592

Features: ·HIGH SPEED tPD =35 ns (TYP.) AT VCC = 5 V· LOWPOWER DISSIPATION ICC = 4 mA (MAX.) at TA = 25 °C·HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) ·OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS ·SYMMETRICAL OUTPUT IMPEDANCE |IOH| = IOL = 4 mA (MIN.) ·BALANCEDPROPAGATION DELAYS tPLH = tPHL· WIDE...

product image

M54HC592 Picture
See larger image
SeekIC No. : 004405925 Detail

M54HC592: Features: ·HIGH SPEED tPD =35 ns (TYP.) AT VCC = 5 V· LOWPOWER DISSIPATION ICC = 4 mA (MAX.) at TA = 25 °C·HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) ·OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS ·...

M54HC592 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54HC592
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·HIGH SPEED
  tPD = 35 ns (TYP.) AT VCC = 5 V
· LOWPOWER DISSIPATION
  ICC = 4 mA (MAX.) at TA = 25 °C
·HIGH NOISE IMMUNITY
  VNIH = VNIL = 28 % VCC (MIN.)
·OUTPUT DRIVE CAPABILITY
  10 LSTTL LOADS
·SYMMETRICAL OUTPUT IMPEDANCE
  |IOH| = IOL = 4 mA (MIN.)
·BALANCEDPROPAGATION DELAYS
  tPLH = tPHL
· WIDE OPERATING VOLTAGE RANGE
  VCC (OPR) = 2 V to 6 V
·PIN AND FUNCTION COMPATIBLE WITH 54/74LS592

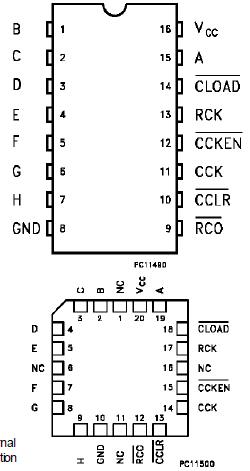

Pinout

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage -0.5 to +7 V
VI DC Input Voltage -0.5 to VCC + 0.5 V
VO DC Output Voltage -0.5 to VCC + 0.5 V
IIK DC Input Diode Current ± 20 mA
IOK DC Output Diode Current ± 20 mA
IO DC Output Current ± 25 mA
ICC or IGND DC VCC or Ground Current ± 50 mA
PD Power Dissipation 500(*) mW
Tstg Storage Temperature -65 to +150 °C
TL Lead Temperature (10 sec) 300 °C

AbsoluteMaximumRatings are those values beyond whichdamage tothe device may occur. Functional operation under these condition isnotimplied.
(*) 500 mW: @ 65 oC derate to 300mWby 10mW/oC: 65 oC to85oC




Description

The M54/74HC592 is a high speed CMOS 8 BIT REGISTER COUNTER fabricated in silicon gate C2MOStechnology. It has the same highspeed performance of LSTTL combined with true CMOS low power consumption.

The M54/74HC592 is a parallel input, 8 bit storage register feeding an 8 bit binary counter.Both the register and the counter have individual positive edge triggered clock. In addition, the counter has direct load andclear functions.Expansion is easily accomplished by connecting RCO af the first stage to the count enable of the second stage. All inputs are equipped with protection circuits against static discharge and transient excess voltage.
