M54HC4520

The M54/74HC4518/4520 are high speed CMOS DUAL 4 BIT BINARY COUNTERS fabricated in silicon gate C²MOS technology. They have the same high speed performance of LSTTL combined with true CMOS low power consumption.

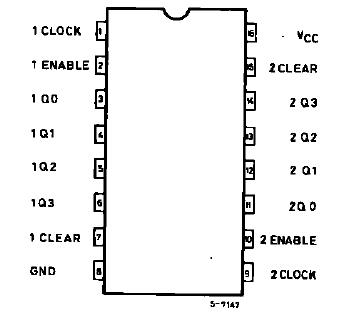

M54/74HC4518/4520 consists of two identical internally synchronous 4-stage counters. The counter stages are D-type flip-flops having interchangeable Clock and ENABLE inputs for incrementing on either the positive- going or negative-going transition.

For single-unit operation theENABLE input is maintained "high" and the M54/74HC4518/4520 counter advances on each positive-going transition of the CLOCK. The counters are cleared by high levels on their clear lines. The counter can be cascaded in the ripple mode by connecting Q4 to the enable input of the subsequent counter while the clock input of the latter is held permanently low.

M54/74HC4518/4520 All inputs are equipped with protection circuits against static discharge and transient excess voltage.
