M54HC4353

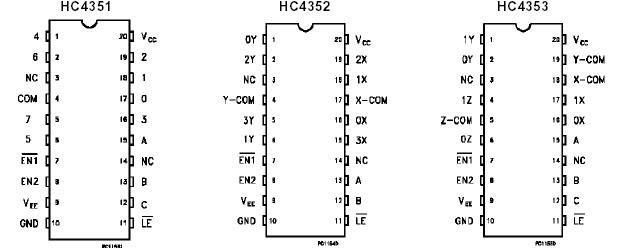

These devices M54HC4353 are analog multiplexer demultiplexers in high speed silicon gate C2MOS technology. These analog switches M54HC4353 are bidirectional and digitally controlled. A built-in level shifting is included to allow them a control input range of up to ± 6V (peak) for an analog signal with digital control signal of 0 to 6V. M54HC4353 VEE supply pin is provided for analog input signals. They have two enable inputs to enable all the switches when high (EN2) or low (EN1). For operation as a digital multiplexer/demultiplexer, VEE is connected to GND. The HC4351 is a single 8 channel multiplexer demultiplexer having three binary control inputs A, B and C to select 1 of 8 to be turned on, and connected to the output.

The HC4352 has a pair of four channel multiplexer demultiplexer having two control inputs A andBthat select one of four channel of the two sections. The HC4353 is a triple two channel multiplexer demultiplexer having three separate digital control inputs A, B and C to select independently one of a pair of channles.
