M54HC42

Features: .HIGH SPEED tPD = 13 ns (TYP.) AT VCC = 5 V .LOWPOWER DISSIPATION ICC = 4 mA (MAX.) AT TA = 25 °C .HIGH NOISE IMMUNITY VNIH= VNIL= 28%VCC (MIN.) .OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS .SYMMETRICAL OUTPUT IMPEDANCE |IOH| = IOL = 4 mA (MIN.) .BALANCEDPROPAGATION DELAYS tPLH = tPHL .WIDE O...

product image

M54HC42 Picture
See larger image
SeekIC No. : 004405907 Detail

M54HC42: Features: .HIGH SPEED tPD = 13 ns (TYP.) AT VCC = 5 V .LOWPOWER DISSIPATION ICC = 4 mA (MAX.) AT TA = 25 °C .HIGH NOISE IMMUNITY VNIH= VNIL= 28%VCC (MIN.) .OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS .SY...

M54HC42 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54HC42
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

.HIGH SPEED tPD = 13 ns (TYP.) AT VCC = 5 V
.LOWPOWER DISSIPATION ICC = 4 mA (MAX.) AT TA = 25 °C
.HIGH NOISE IMMUNITY VNIH= VNIL= 28%VCC (MIN.)
.OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS
.SYMMETRICAL OUTPUT IMPEDANCE |IOH| = IOL = 4 mA (MIN.)
.BALANCEDPROPAGATION DELAYS tPLH = tPHL
.WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V
.PIN AND FUNCTION COMPATIBLEWITH 54/74LS42


Pinout

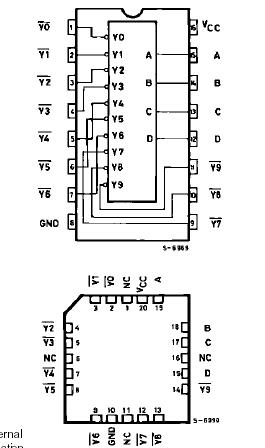

Connection Diagram


Specifications


Parameter
Value
SYMBOL
 UNIT
Supply Voltage
-0.5 to +7
VCC
V
DC Input Voltage
-0.5 to VCC + 0.5
VI
V
DC Output Voltage
-0.5 to VCC + 0.5
VC

V
DC Input Diode Current
± 20
IIK
mA
DC Output Diode Currente
± 20
Tj
mA
DC Output Source Sink Current Per Output Pin
± 25
Tstg
mA
DC VCC or Ground Current
± 50
TSTG
oC
Power Dissipation
500 (*)
PD
mW
Storage Temperature
-65 to +150
TSTG
oC
Lead Temperature (10 sec)
300
VEBO
°C

AbsoluteMaximumRatings are those values beyond whichdamage tothe device may occur. Functional operation under these condition isnotimplied.(*) 500 mW: @ 65 oC derate to 300mWby 10mW/oC: 65 oC to85oC


Description

The M54/74HC42 is a high speed CMOS BCD-TODECIMAL DECODER fabricated in silicon gate C2MOS technology.

M54/74HC42 has the same high speed performance of LSTTL combined with true CMOS low power consumption. A BCD code applied to the four inputs A-D selects one of ten decimal outputs Y0-Y9, which goes low to fifteen gives a high level at all outputs. This device also can be used as a3-to-8 LINE DECODER,when the D input is assigned as a disable input. This device is useful for code conversion, address decoding, memory selection, demultiplexing, or readout decoding.

M54/74HC42 All inputs are equipped with protection circuits against static discharge and transient excess voltage.
