M54HC4066

Features: HIGH SPEED tPD = 7 ns (TYP.) AT VCC = 5 V LOWPOWER DISSIPATION ICC = 1 mA (MAX.) AT TA = 25 HIGH NOISE IMMUNITY VNIH= VNIL= 28%VCC (MIN.) LOW ON RESISTANCE RON = 50W (TYP.) AT VCC = 9 V, II/O = 100 uA SINE WAVE DISTORTION 0.042% (TYP.) AT VCC = 4V f = 1KHz WIDE OPERATING VOLTAGE RANGE V...

product image

M54HC4066 Picture
See larger image
SeekIC No. : 004405903 Detail

M54HC4066: Features: HIGH SPEED tPD = 7 ns (TYP.) AT VCC = 5 V LOWPOWER DISSIPATION ICC = 1 mA (MAX.) AT TA = 25 HIGH NOISE IMMUNITY VNIH= VNIL= 28%VCC (MIN.) LOW ON RESISTANCE RON = 50W (TYP.) AT VCC = 9 V, ...

M54HC4066 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54HC4066
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

HIGH SPEED
   tPD = 7 ns (TYP.) AT VCC = 5 V
LOWPOWER DISSIPATION
   ICC = 1 mA (MAX.) AT TA = 25
HIGH NOISE IMMUNITY
  VNIH= VNIL= 28%VCC (MIN.)
LOW"ON" RESISTANCE
   RON = 50W (TYP.) AT VCC = 9 V, II/O = 100 uA
SINE WAVE DISTORTION
0.042% (TYP.) AT VCC = 4V f = 1KHz
WIDE OPERATING VOLTAGE RANGE
   VCC (OPR) = 2 V TO 12 V
PIN AND FUNCTION COMPATIBLEWITH 4066B




Pinout

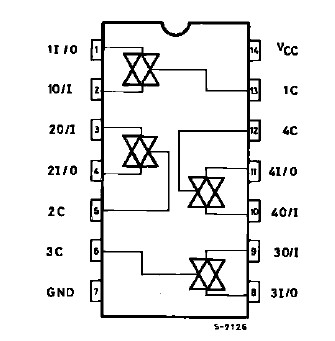

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
Supply Voltage
-0.5 to +13
V
VIN
DC Input Voltage
-0.5 to VCC+0.5
V
VI/O
DC Input/Output Voltage
-0.5 to VCC+0.5
V
IOK
Control Input DC Diode Current
± 20
mA
IIOK
I/O DC Diode Current
± 20
mA
IO
DC Output Source Sink Current Per Output Pin
± 25
mA
ICC or IGND
DC VCC or Ground Current
± 50
mA
PD
Power Dissipation
500(*)
mW
Tstg
Storage Temperature
-65 to +150
TL
Lead Temperature (10 sec)
300



Description

The M54/74HC4066 is a high speed CMOS QUADBILATERAL SWITCH fabricated in silicon gateC2MOS technology. It has high speed performancecombined with true CMOS low power consumption.
The M54/74HC4066 C input is provided to control the switch ; theswitch is ON when the C input is held high and offwhen Cis held low.
