M54HC4028

Features: ·HIGH SPEED tPD = 18 ns (TYP.) AT VCC = 5 V· LOWPOWER DISSIPATION ICC = 4 mA (MAX.) at TA = 25 °C·HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) ·OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS ·SYMMETRICAL OUTPUT IMPEDANCE |IOH| = IOL = 4 mA (MIN.) ·BALANCEDPROPAGATION DELAYS tPLH = tPHL· WID...

product image

M54HC4028 Picture
See larger image
SeekIC No. : 004405897 Detail

M54HC4028: Features: ·HIGH SPEED tPD = 18 ns (TYP.) AT VCC = 5 V· LOWPOWER DISSIPATION ICC = 4 mA (MAX.) at TA = 25 °C·HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) ·OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS ...

M54HC4028 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54HC4028
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·HIGH SPEED
  tPD = 18 ns (TYP.) AT VCC = 5 V
· LOWPOWER DISSIPATION
  ICC = 4 mA (MAX.) at TA = 25 °C
·HIGH NOISE IMMUNITY
  VNIH = VNIL = 28 % VCC (MIN.)
·OUTPUT DRIVE CAPABILITY
  10 LSTTL LOADS
·SYMMETRICAL OUTPUT IMPEDANCE
  |IOH| = IOL = 4 mA (MIN.)
·BALANCEDPROPAGATION DELAYS
  tPLH = tPHL
· WIDE OPERATING VOLTAGE RANGE
  VCC (OPR) = 2 V to 6 V
·PIN PIN AND FUNCTION COMPATIBLE WITH 4028B


Pinout

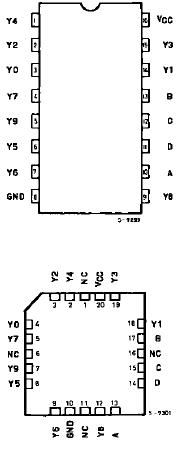

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage -0.5 to +7 V
VI DC Input Voltage -0.5 to VCC + 0.5 V
VO DC Output Voltage -0.5 to VCC + 0.5 V
IIK DC Input Diode Current ± 20 mA
IOK DC Output Diode Current ± 20 mA
IO DC Output Current ± 25 mA
ICC or IGND DC VCC or Ground Current ± 50 mA
PD Power Dissipation 500(*) mW
Tstg Storage Temperature -65 to +150 °C
TL Lead Temperature (10 sec) 300 °C
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operationunder these conditions is not implied
(*) 500mW65 °C; derate to 300mW by 10mW/°C from 65°C to 85°C


Description

The M54/74HC4028 is a high speed CMOS BCDTO- DECIMAL DECODER fabricated in silicon gate C2MOStechnology. It has the same highspeed performance of LSTTL combined with true CMOS low power consumption. ABCD code applied to the four inputs (A to D) provides a high level at the selected one of the decimal decoded outputs. An illegal BCD code such as eleven to fifteen gives a low level at all outputs. The device also can be used as 3-TO- 8-LINE DECODER, when D input is assigned as a disable input. The device is useful for code conversion, address decoding, memory selection, demultiplexing, or read out decoding.

M54/74HC4028 All inputs are equipped with protection circuits against static discharge and transient excess voltage.
