M54HC4002

Features: `HIGH SPEED`tPD = 10 ns (TYP.) AT VCC = 5 V LOWPOWER DISSIPATION`ICC = 1 A (MAX.) AT TA = 25 HIGH NOISE IMMUNITY`VNIH = VNIL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY`10 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE`|IOH| = IOL = 4 mA (MIN.) BALANCEDPROPAGATION DELAYS`tPLH = tPHL WIDE OPERATI...

product image

M54HC4002 Picture
See larger image
SeekIC No. : 004405890 Detail

M54HC4002: Features: `HIGH SPEED`tPD = 10 ns (TYP.) AT VCC = 5 V LOWPOWER DISSIPATION`ICC = 1 A (MAX.) AT TA = 25 HIGH NOISE IMMUNITY`VNIH = VNIL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY`10 LSTTL LOADS SYMMET...

M54HC4002 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54HC4002
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`HIGH SPEED
`tPD = 10 ns (TYP.) AT VCC = 5 V LOWPOWER DISSIPATION
`ICC = 1 A (MAX.) AT TA = 25 HIGH NOISE IMMUNITY
`VNIH = VNIL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY
`10 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE
`|IOH| = IOL = 4 mA (MIN.) BALANCEDPROPAGATION DELAYS
`tPLH = tPHL WIDE OPERATING VOLTAGE RANGE
`VCC (OPR) = 2 V TO 6 V PIN AND FUNCTION COMPATIBLE WITH 4002B


Application

Connection Diagram


Pinout

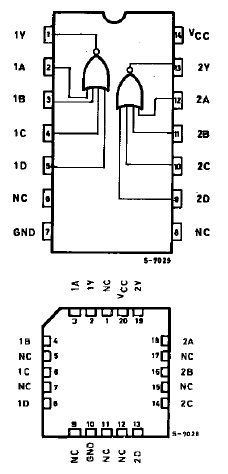

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 Supply Voltage
-0.5 to +7
V
VI
 DC Input Voltage
-0.5 to VCC + 0.5
V
VO
 DC Output Voltage
-0.5 to VCC + 0.5
V
IIK
 DC Input Diode Current
±20
mA
IOK
 DC Output Diode Current
±20
mA
IO
 DC Output Source Sink Current Per Output Pin
±25
mA
ICC or IGND
 DC VCC or Ground Current
±50
mA
PD
 Power Dissipation
500 (*)
mW
Tstg
 Storage Temperature
-65 to +150
TL
 Lead Temperature (10 sec)
300

AbsoluteMaximumRatings are those values beyond whichdamage tothe device may occur. Functional operation under these condition isnotimplied.
(*) 500 mW: @ 65 derate to 300mWby 10mW/: 65 to 85




Description

The M54/74HC4002 is a high speed CMOS DUAL 4-INPUT NOR GATE fabricated in silicon gate C2MOS technology.

M54/74HC4002 has the same high speed performance of LSTTL combined with true CMOS low power consumption.The internal circuit is composed of 3 stages including buffer output, which ensures high noise immunity and stable output.

M54/74HC4002 All inputs are equipped with protection circuits against static discharge and transient excess voltage.
