M54HC390

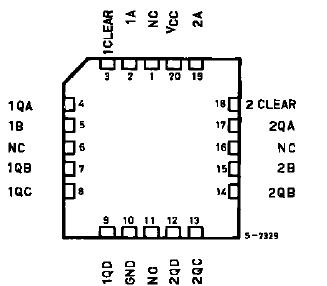

The M54/74HC390 is a high speed CMOS DUAL DECADE COUNTER fabricated in silicon gate C²MOStechnology. It has the same highspeed performance of LSTTL combined with true CMOS low power consumption.

This dual decade counter M54/74HC390 contains two independent ripple carry counters. Each counter is composed of a divide-by-two and divide-by-five counter. The divide-by-two and divide-by-five counters can be cascaded to form dual decade, dual biquinary, or various combinations up to a single divide-by-100 counter.

Each 4-bit counter M54/74HC390 is incremented on the high to low transition (negative edge) of the clock input, and each has an independent clear input. When clear is set low all four bits of each counter are set to low. This enables count truncation and allows the implementation of divide-by-N counter configurations.

M54/74HC390 All inputs are equipped with protection circuits against static discharge and transient excess voltage.
