M54HC292

Features: ·HIGH SPEED·fMAX = 70 MHz (TYP.) at VCC = 5 V LOWPOWER DISSIPATION·ICC = 4 mA (MAX.) at TA = 25 oC HIGH NOISE IMMUNITY·VNIH = VNIL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY·10 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE·| IOH|= IOL = 4 mA (MIN.) BALANCEDPROPAGATION DELAYS·tPLH = tPHL WIDE O...

product image

M54HC292 Picture
See larger image
SeekIC No. : 004405870 Detail

M54HC292: Features: ·HIGH SPEED·fMAX = 70 MHz (TYP.) at VCC = 5 V LOWPOWER DISSIPATION·ICC = 4 mA (MAX.) at TA = 25 oC HIGH NOISE IMMUNITY·VNIH = VNIL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY·10 LSTTL LOADS ...

M54HC292 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54HC292
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·HIGH SPEED
·fMAX = 70 MHz (TYP.) at VCC = 5 V LOWPOWER DISSIPATION
·ICC = 4 mA (MAX.) at TA = 25 oC HIGH NOISE IMMUNITY
·VNIH = VNIL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY
·10 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE
·| IOH|= IOL = 4 mA (MIN.) BALANCEDPROPAGATION DELAYS
·tPLH = tPHL WIDE OPERATING VOLTAGE RANGE
·VCC (OPR) = 2 V TO 6 V PIN AND FUNCTION COMPATIBLE WITH 54/74LS292/294


Pinout

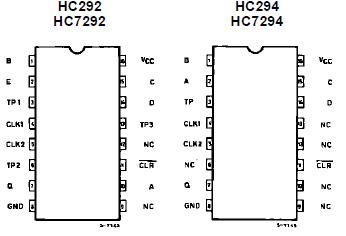

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 Supply Voltage
-0.5 to +7
V
VI
 DC Input Voltage
-0.5 to VCC + 0.5
V
VO
 DC Output Voltage
-0.5 to VCC + 0.5
V
IIK
 DC Input Diode Current
±20
mA
IOK
 DC Input Diode Current
±20
mA
IO
 DC Output Source Sink Current Per Output Pin
±25
mA
ICC or IGND
DC VCC or Ground Current
±50
mA
PD
 Power Dissipation
500*
mW
Tstg
 Storage Temperature
-65 to +150
TL
 Lead Temperature (10 sec)
300
AbsoluteMaximum Ratings arethose values beyond whichdamage tothe devicemayoccur. Functional operation under these conditions is not implied.
(*) 500 mW: 65 derate to 300mWby 10mW/: 65 to85


Description

The 54/74HC292/7292 and HC294/7294 are high speedCMOS PROGRAMMABLE DIVIDER/TIMER fabricated with silicon C2MOS technology.

54/74HC292/7292 and HC294/7294 achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation.

These devices 54/74HC292/7292 and HC294/7294 are programmable frequency dividers. The typeshave two clock inputs, either one may be used for clock gating. (see the function table). The HC292/7292 can divide from 22 to 231,and the HC294/7294 can divide from 22 to 215. The types feature an active-low clear input to initialize the state of all flip-flops. To facilitate incoming inspection, test points are provided. (TP1, TP2 and TP3 on the HC292/7292 and TP on the HC294/7294). All inputs are equipped with protection circuits against static discharge and transient excess voltage.

HC292/294 have Q output with "Totem pole"configuration and test point TP with "Open Drain"output configuration. HC7292/7294 have all outputs "Totem Pole".
