Product Details

Description



Pinout

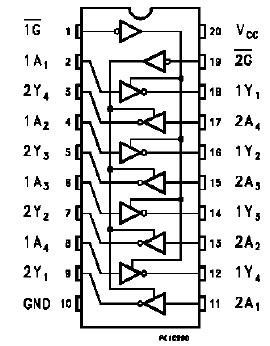

  Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
Supply Voltage
-0.5 to 13
V
VI
DC Input Voltage
-0.5 to 13
V
VO
DC Output Voltage
-0.5 to VCC + 0.5
V
IIK
DC Input Diode Current
-20
mA
IOK
DC Output Diode Current
± 100
mA
IO
DC Output Source Sink Current Per Output Pin
± 35
mA
ICC or IGND
DC VCC or Ground Current
± 100
mA
PD
Power Dissipation
500 (*)
mW
Tstg
Storage Temperature
-65 to +150
TL
Lead Temperature (10 sec)
300



Description

The M54/74HC240HV and HC241HV are high speed CMOS OCTAL BUS BUFFERs fabricated in silicon gate C2MOS technology.

The M54/74HC240HV and HC241HV  have the same high speed performance of LSTTL combined with true CMOS low power consumption.

Performing the same function of their non HV counterpart, they have a particularl input configuration which allows all inputs to be driven by logic levels exceeding the supply voltage.

This makes them particularly suitable in systems where mixed 3V/5V logic devices need to be interfaced.

All inputs of M54/74HC240HV and HC241HV are equipped with protection circuits against static discharge and transient excess voltage.
NOTE: BOTH DEVICES DO NOT MEET 2KV ESD RATING
