M54HC221

HIGH SPEED

LOWPOWER DISSIPATION

HIGH NOISE IMMUNITY

OUTPUT DRIVE CAPABILITY

SYMMETRICAL OUTPUT IMPEDANCE

BALANCEDPROPAGATION DELAYS

PIN AND FUNCTION COMPATIBLE WITH
54/74LS221

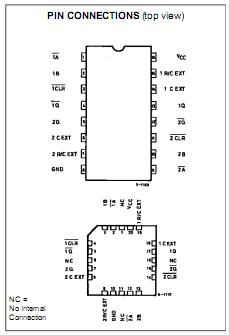

The M54/74HC221/221A are high speed CMOS MONOSTABLE multivibrators fabricated with silicon gate C2 MOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining theCMOS lowpower dissipation. There are two trigger inputs, AINPUT (negative edge) and B INPUT (positive edge). Triggering on the B input occurs at a particular voltage threshold and is not related to the rise and fall time of the applied pulse. The M54/74HC221/221A may also be triggered by using the CLR input (positive-edge) because of the Schmitt-trigger input ; after triggering the output maintains the MONOSTABLEstate for the time period determined by the external resistor Rx and capacitor Cx.Taking CLR low breaks this MONOSTABLE STATE. If the next trigger pulse occurs during theMONOSTABLE period it makes the MONOSTABLE period longer.
