Product Details

Description



Pinout

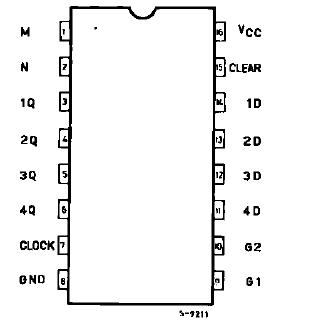

  Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
Supply Voltage
-0.5 to +7
V
VI
DC Input Voltage
-0.5 to VCC + 0.5
V
VO
DC Output Voltage
-0.5 to VCC + 0.5
V
IIK
DC Input Diode Current
± 20
mA
IOK
DC Output Diode Current
± 20
mA
IO
DC Output Source Sink Current Per Output Pin
± 35
mA
ICC or IGND
DC VCC or Ground Current
± 70
mA
PD
Power Dissipation
500 (*)
mW
Tstg
Storage Temperature
-65 to +150
TL
Lead Temperature (10 sec)
300



Description

The M54/74HC173 is ahigh speedCMOSQUADDTYPE REGISTER (3-STATE) fabricated in silicon gate C2MOS technology.

M54/74HC173 has the same high speed performance of LSTTL combined with true CMOS low power consumption. This device is composed ofa four-bit register including D-type flip-flops and3-state buffers. The four flipflops are controlled by a common clock input (CLOCK) and a common reset input (CLEAR). Signals applied to the data inputs (D1-D4) are stored at the respective flip-flops on the positive going transition of the clock input, only when both clock control inputs (G1 and G2) are held low.

The reset feature of M54/74HC173 is asynchronous and active high. The stored data are provided on each output only when both output control inputs (M and N) are held low, otherwise the outputs go to the high-impedance state.

M54/74HC173 All inputs are equipped with protection circuits against static discharge and transient excess voltage
