Product Details

Description



Pinout

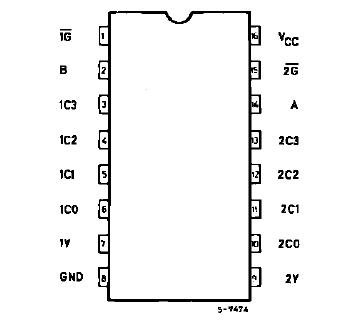

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
Supply Voltage
-0.5 to +7
V
VI
DC Input Voltage
-0.5 to VCC + 0.5
V
VO
DC Output Voltage
-0.5 to VCC + 0.5
V
IIK
DC Input Diode Current
± 20
mA
IOK
DC Output Diode Current
± 20
mA
IO
DC Output Source Sink Current Per Output Pin
± 25
mA
ICC or IGND
DC VCC or Ground Current
± 50
mA
PD
Power Dissipation
500 (*)
mW
Tstg
Storage Temperature
-65 to +150
TL
Lead Temperature (10 sec)
300



Description

The M54/74HC153 and M54/74HC253 are high speedCMOSDUAL 4-CHANNEL MULTIPLEXERS fabricated with silicon gate C2MOS technology. Both achieve high speed operation, similar to equivalent LSTTL, while maintaining the CMOS low power dissipation.

The designer M54/74HC153 and M54/74HC253 has a choice of complementary output (HC153) and 3-state output (HC253). Each of these data (1C0-1C3, 2C0-2C3) is selected by the two address inputs A and B.

M54/74HC153 and M54/74HC253 Separate strobe inputs (1G, 2G) are provided for each of the two four-line sections. The strobe input (G) can be used to inhibit the data output ; the output of HC 153 is fixed at a low level and the output of HC253 is a high impedance, while the strobe input is held low.

M54/74HC153 and M54/74HC253 All inputs are equipped with protection circuits against static discharge and transient excess voltage.
