M54HC147

Features: HIGH SPEED tPD = 15 ns (TYP.) AT VCC = 5 VLOWPOWER DISSIPATION ICC = 4A (MAX.) AT TA = 25 °C HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE IOH = IOL = 4 mA (MIN.) BALANCEDPROPAGATION DELAYS tPLH = tPHL WIDE OPERATING...

product image

M54HC147 Picture
See larger image
SeekIC No. : 004405821 Detail

M54HC147: Features: HIGH SPEED tPD = 15 ns (TYP.) AT VCC = 5 VLOWPOWER DISSIPATION ICC = 4A (MAX.) AT TA = 25 °C HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS SYMMET...

M54HC147 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54HC147
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

HIGH SPEED tPD = 15 ns (TYP.) AT VCC = 5 V
LOWPOWER DISSIPATION ICC = 4A (MAX.) AT TA = 25 °C
HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.)
OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS
SYMMETRICAL OUTPUT IMPEDANCE IOH = IOL = 4 mA (MIN.)
BALANCEDPROPAGATION DELAYS tPLH = tPHL
WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V
PIN AND FUNCTION COMPATIBLE  WITH 54/74LS147


Pinout

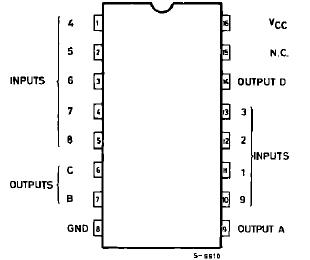

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC
 Supply Voltage
-0.5 to +7
V
VI
 DC Input Voltage
-0.5 to VCC + 0.5
V
VO
DC Output Voltage
-0.5 to VCC + 0.5
V
IIK
 DC Input Diode Current
± 20
mA
IOK
 DC Output Diode Current
± 20
mA
IO
 DC Output Source Sink Current Per Output Pin
± 25
mA
ICC or IGND
 DC VCC or Ground Current
± 50
mA
PD
 Power Dissipation
500 (*)
mW
Tstg
 Storage Temperature
-65 to +150
°C
TL
 Lead Temperature (10 sec)
300
°C
AbsoluteMaximumRatings are those values beyond whichdamage tothe device may occur. Functional operation under these condition isnotimplied.
(*) 500 mW: 65 derate to 300mWby 10mW/: 65 to85


Description

The M54/74HC147 is a high speed CMOS 10 TO 4 LINE PRIORITY ENCODER fabricated in silicon gate C2MOS technology. It has the same high speed performance of LSTTL combined with true CMOS low power consumption.

The M54/74HC147 features priority encoding of the inputs to ensure that only the highest order data line is encoded.
Nine input lines are encoded to a four line BCD output. The implied decimal zero condition requires no input condition as zero is encoded when all nine datalinesare at high logic level. Alldata input and outputs are active at the low logic level. All inputs are equipped with protection circuits against static discharge and transient excess voltage.
