M54HC07

`HIGH SPEED t<sub>PD</sub> = 5 ns (TYP.) AT V<sub>CC</sub> = 5 V
`LOWPOWER DISSIPATION I_CC = 1 A (MAX.) AT TA = 25 °C
`HIGH NOISE IMMUNITY  V<sub>NIH</sub> = V<sub>NIL</sub> = 28 % V<sub>CC</sub> (MIN.)
`OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS
`WIDE OPERATING VOLTAGE RANGE V<sub>CC</sub> (OPR) = 2 V TO 6 V
`PIN AND FUNCTION COMPATIBLE WITH 54/74LS07

The M54/74HC07 is a high speed CMOS HEX OPEN DRAIN BUFFER fabricated in silicon gate C2MOStechnology. It has the same highspeed performance of LSTTL combined with true CMOS low power consumption.

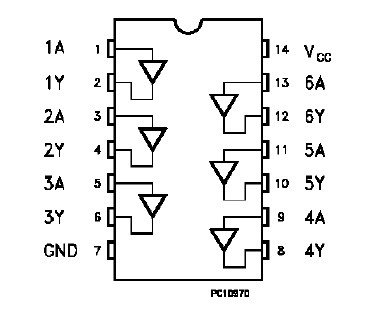

The M54/74HC07  internal circuit is composed of 2 stages including buffer output, which enables high noise immunity and stable output. All inputs are equipped with circuits against static discharge and transient excess voltage.
