Features:

Serial input and serial or parallel output
Serial output enables cascade connection
Built-in latch for each stage
Enable input provides output control
Low supply current (standby current ICC1mA)
Serial I/O level is compatible with typical CMOS devices
Driver features: High withstand voltage (BVCEO30V) Capable of large drive currents (I O(max)=100mA)
Wide operating temperrature range Ta=-10 +75°C


Application

Dot drivers of thermal printer heads, serial/parallel conversion. Drivers for relays and solenoids.




Pinout

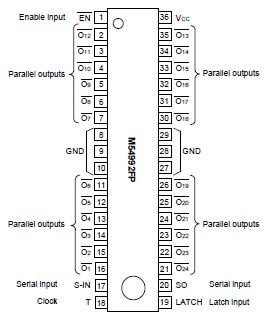

Connection Diagram




Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VCC
Supply Voltage

-0.5 8
V
VI
Input Voltage

-0.5 to VCC + 0.5
V
VO
Output Voltage
S-OUT
 M54992FP
-0.5 to VCC + 0.5
V
O1 O24 : OFF
-0.5 30
V
IO
Output Current

120
mA
PD
Power Dissipation
Ta=25°C
Mounted on a board
 M54992P
2.0
W
M54992FP
1.9
W
Topr
Operating temperature

-10 75
Tstg
Storage Temperature

-55 125



Description

The M54992 is a semiconductor integrated circuit consisting of 24 stages of CMOS shift registers and latches with serial inputs and serial or parallel outputs. It is based on Bi-CMOS process technology, and has 24 bipolar drivers at the parallel outputs.
