M54995P

Features: `Serial input and serial or parallel output`Serial output enables cascade connection` Built-in latch for each stage` Enable input provides output control`Low supply current (standby current ICC10mA)`Serial I/O level is compatible with typical CMOS devices`Driver features: High withstand ...

product image

M54995P Picture
See larger image
SeekIC No. : 004405798 Detail

M54995P: Features: `Serial input and serial or parallel output`Serial output enables cascade connection` Built-in latch for each stage` Enable input provides output control`Low supply current (standby curren...

M54995P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54995P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Serial input and serial or parallel output
`Serial output enables cascade connection
` Built-in latch for each stage
` Enable input provides output control
`Low supply current (standby current ICC10mA)
`Serial I/O level is compatible with typical CMOS devices
`Driver features: High withstand voltage (BVCEO30V)
`Wide operating temperature range Ta=-20 +75°C


Application

Dot drivers for thermal print heads. Serial/parallel conversion. Drivers for relays and solenoids.


Pinout

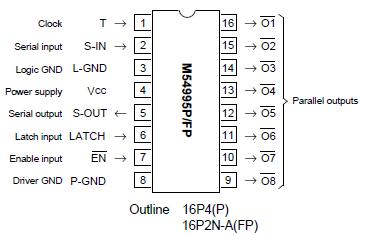

Connection Diagram


Specifications

Symbol
Parameter
 Conditions
Ratings
Unit
VCC
 Supply Voltage
-0.5 +8
V
VI
 Input Voltage
-0.5 VCC+0.5
V
VO
Off State Output Voltage S-OUT
-0.5 VCC+0.5
V
O1 O8 : OFF
-0.5 30
IO
 Output Sink Current O1 O8 : ON
60
mA
Pd
 Power dissipation Ta=25°C M54995P
1.25
W
M54995FP
0.8
Toper
 Operating Temperature Range
-20 75
°C
Tstg
 Storage Temperature Range
-55 125
°C



Description

The M54995 is a semiconductor integrated circuit consisting of 8 stages of CMOS shift registers and latches with serial inputs and serial or parallel outputs. It is based on Bi-CMOS process technology, and has 8 bipolar drivers at the parallel outputs.
