M54992P

Features: Serial input and serial or parallel output Serial output enables cascade connection Built-in latch for each stage Enable input provides output control Low supply current (standby current ICC1mA) Serial I/O level is compatible with typical CMOS devices Driver features: High withstand vol...

product image

M54992P Picture
See larger image
SeekIC No. : 004405796 Detail

M54992P: Features: Serial input and serial or parallel output Serial output enables cascade connection Built-in latch for each stage Enable input provides output control Low supply current (standby current ...

M54992P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54992P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Serial input and serial or parallel output
Serial output enables cascade connection
Built-in latch for each stage
Enable input provides output control
Low supply current (standby current ICC1mA)
Serial I/O level is compatible with typical CMOS devices
Driver features: High withstand voltage (BVCEO30V) Capable of large drive currents (I O(max)=100mA)
Wide operating temperrature range Ta=-10 +75°C


Application

Dot drivers of thermal printer heads, serial/parallel conversion. Drivers for relays and solenoids.




Pinout

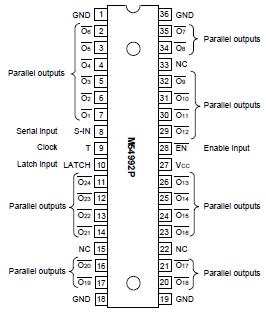

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VCC
Supply Voltage

-0.5 8
V
VI
Input Voltage

-0.5 to VCC + 0.5
V
VO
Output Voltage
S-OUT
 M54992FP
-0.5 to VCC + 0.5
V
O1  O24 : OFF
-0.5 30
V
IO
Output Current

120
mA
PD
Power Dissipation
Ta=25°C
Mounted on a board
 M54992P
2.0
W
M54992FP
1.9
W
Topr
Operating temperature

-10 75
Tstg
Storage Temperature

-55 125



Description

The M54992 is a semiconductor integrated circuit consisting of 24 stages of CMOS shift registers and latches with serial inputs and serial or parallel outputs. It is based on Bi-CMOS process technology, and has 24 bipolar drivers at the parallel outputs.
