M54975P

Features: ` Serial input to serial/parallel output`Cascade connections possible through serial output`Latch circuit included for each stage`Enable input for output control`Low supply current .................................. ICC 10A at standby`Serial input/output level is compatible with standard...

product image

M54975P Picture
See larger image
SeekIC No. : 004405794 Detail

M54975P: Features: ` Serial input to serial/parallel output`Cascade connections possible through serial output`Latch circuit included for each stage`Enable input for output control`Low supply current ..........

M54975P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54975P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Serial input to serial/parallel output
`Cascade connections possible through serial output
`Latch circuit included for each stage
`Enable input for output control
`Low supply current .................................. ICC 10A at standby
`Serial input/output level is compatible with standard CMOS
`Driver : Withstand voltage ...................................... BVCEO 30V
               Large drive current ................................ (IO(max)=300mA)
`Wide operating temperature range ..................... Ta=-20 +75°C


Application

Thermal printer head dot driver, Serial-to parallel conversion, Relay and Solenoid driver


Pinout

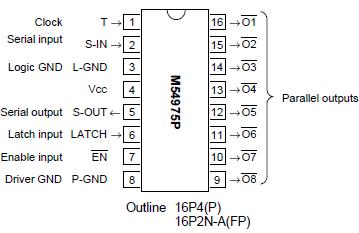

Connection Diagram


Specifications

Symbol
Parameter
 Conditions
Ratings
Unit
VCC
 Supply Voltage
-0.5 +8
V
VI
 Input Voltage
-0.5 VCC+0.5
V
VO
Off State Output Voltage S-OUT
-0.5 VCC+0.5
V
O1 O8 : OFF
-0.5 +30
IO
 Output Sink Current O1 O8 : ON
350
mA
Pd
 Power dissipation Ta=25°C M54975P
1.25
W
M54975FP
0.8
Toper
 Operating Temperature Range
-20 75
°C
Tstg
 Storage Temperature Range
-55 125
°C



Description

The M54975 is a semiconductor integrated circuit fabricated using Bi-CMOS technology. It contains a serial input to serial/parallel output 8-bit CMOS shift register and CMOS latch as well as bipolar 8-bit parallel-output driver.
