M5480

Features: 3 1/2 DIGIT LED DRIVER (23 segments) CURRENT GENERATOR OUTPUTS (no re. sistors required) .CONTINUOUS BRIGHTNESS CONTROL .SERIAL DATA INPUT .NO LOAD SIGNAL REQUIRED .WIDE SUPPLY VOLTAGE OPERATION TTL COMPATIBILITApplicationMICROPROCESSOR DISPLAYS .INDUSTRIAL CONTROL INDICATION .RELAY DRIV...

product image

M5480 Picture
See larger image
SeekIC No. : 004405781 Detail

M5480: Features: 3 1/2 DIGIT LED DRIVER (23 segments) CURRENT GENERATOR OUTPUTS (no re. sistors required) .CONTINUOUS BRIGHTNESS CONTROL .SERIAL DATA INPUT .NO LOAD SIGNAL REQUIRED .WIDE SUPPLY VOLTAGE OPE...

M5480 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M5480
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

3 1/2 DIGIT LED DRIVER (23 segments)
CURRENT GENERATOR OUTPUTS (no re. sistors required) .
CONTINUOUS BRIGHTNESS CONTROL .
SERIAL DATA INPUT .
NO LOAD SIGNAL REQUIRED .
WIDE SUPPLY VOLTAGE OPERATION
TTL COMPATIBILIT


Application

MICROPROCESSOR DISPLAYS .
INDUSTRIAL CONTROL INDICATION .
RELAY DRIVER
INSTRUMENTATION READOUTS

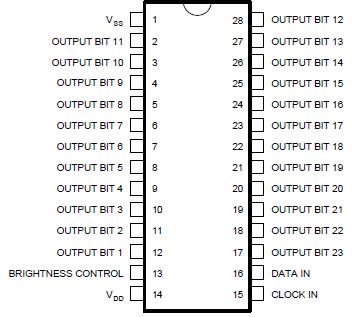

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VDD
 Supply Voltage
0.3 to 15
V
VI
 Input Voltage
0.3 to 15
V
VO (off)
 Off State Output Voltage
15
V
IO
 Output Sink Current
40
mA
Ptot
 Total Package Power Dissipation at 25 °C
at 85 °C
940
490
mW
mW
Tj
 Junction Temperature
150
°C
Toper
 Operating Temperature Range
25, + 85
°C
Tstg
 Storage Temperature Range
65, + 150
°C
Stresses in excess of those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions in excess of those indicated in the  operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.


Description

The M5480 is a monolithic MOS integrated circuit produced with a N-channel silicon gate technology.

It utilizes the M5451 die packaged in a 28-pin plas-tic package making it ideal for a 3 1/2 digit dispaly. A single pin controls the LED dispaly brightness by setting a reference current through a variable resistor connected either to VDD or to a separate supply of 13.2V maximum.

The M5480 is a pin-to-pin replacement of the NS MM 5480.
