M54679FP

Features: ` Wide supply voltage sphere (10 35V).` Bipolar, constant current PWM function. (Top side transistors PWM function, maximum current is 0.8 Amps).` Few external components. (This IC can be operated with 1 capacitor and 2 resistances).` 4 phases input style (include the protection functio...

product image

M54679FP Picture
See larger image
SeekIC No. : 004405777 Detail

M54679FP: Features: ` Wide supply voltage sphere (10 35V).` Bipolar, constant current PWM function. (Top side transistors PWM function, maximum current is 0.8 Amps).` Few external components. (This IC can be...

M54679FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54679FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Wide supply voltage sphere (10 35V).
` Bipolar, constant current PWM function.
    (Top side transistors PWM function, maximum current is 0.8 Amps).
` Few external components.
   (This IC can be operated with 1 capacitor and 2 resistances).
` 4 phases input style (include the protection function of output through current).
`Output current change function (2 bits, 4 type currents).
` Thermal protection circuit.
`Include flywheel diodes.


Application

Printer, PPC and Facsimile.


Pinout

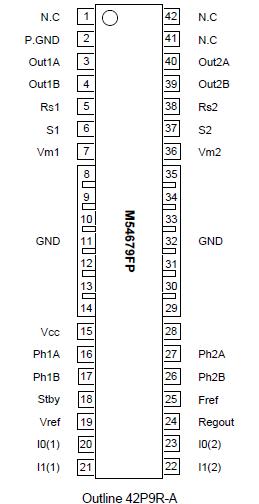

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vm
 Output stage supply voltage
-0.3 37
V
Iout
 Output current Per one phase
±0.8
A
VCC
 Supply voltage
-0.3 7.0
V
Vlogic
 Logic input voltage Ph1A, Ph1B, Ph2A, Ph2B, I0, I1, Stby
-0.3 Vcc
V
Vanalog
 Analog input voltage Vref, S1, S2
-0.3 Vcc
V
VRs
 Current sensor voltage Rs1, Rs2
1.5
V
Pd
 Power dissipation Under board mount condition. W
(see next page)
2.7
W
K
 Thermal derating
46
°C/W
Tj
 Junction temperature
150
°C
Topr
 Operating temperature
-20 75
°C
Tstg
 Storage temperature
-40 125
°C



Description

The M54679FP is a semiconductor integrated circuit designed for stepper motor driver used to Printer, PPC and Facsimile.
