Features:

` Wide output current control range (20 1200mA)
`Bipolar and constant current
` Built in a thermal shutdown circuit

Application

Office automation equipment such as printer, FDD, HDD, and FAX

Pinout

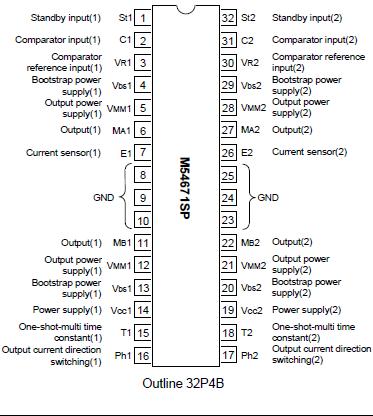

Connection Diagram

Specifications

Symbol	Parameter	Conditions	Ratings	Unit
V_CC	Supply voltage		-0.3 7	V
V_MM	Output supply voltage		-0.3 24	V
V_bs	Bootstrap supply voltage		-0.3 27	V
V_L	Logic input voltage		-0.3 6	V
V_C	Analog input voltage		-0.3 V_CC	V
V_R	Comparative input voltage		-0.3 15	V
I_L	Logic input current		-10	mA
I_C	Analog input current		-10	mA
I_MM	Output supply current		±1000	mA
P_d	Power dissipation		1.70	W
T_opr	Operating temperature		-20 75	°C
T_stg	Storage temperature		-55 125	°C

Description

The M54671SP is a semiconductor IC to drive a bipolar stepper motor directly by controlling the coil current with the constant current method.
