Features:

`High breakdown voltage (BVCEO 50V)
`High-current driving (Ic(max) = 500mA)
` With clamping diodes
`Driving available with TTL output or with PMOS IC output
` Wide operating temperature range (Ta = 20 to +75°C)




Application

Drives of relays and printers, digit drives of indication elements such as LEDs and lamps, and MOS-bipolar logic IC interfaces

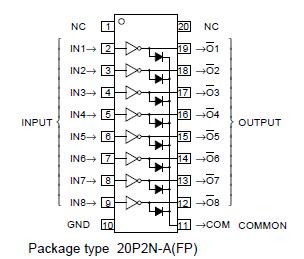

Pinout






Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VCEO
Collector-emitter voltage Output, H
0.5 ~ +50
V
IC
 Collector current Current per circuit output, L
500
mA
VI
 Input voltage
0.5 ~ +30
V
IF
 Clamping diode forward current
500
mA
VR
 Clamping diode reverse voltage
50
V
Pd
 Power dissipation Ta = 25°C, when mounted on board
1.79(P)/1.10(FP)
W
Topr
 Operating temperature
20 ~ +75
°C
Tstg
 Storage temperature
55 ~ +125
°C





Description

M54585P and M54585FP are eight-circuit Darlington transistor arrays with clamping diodes. The circuits are made of NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply.
