M54564P

Features: ` High breakdown voltage (BVCEO 50V)`High-current driving (Io(max) = 500mA)` With output pulldown resistance (Driving available with fluorescent display tube)` Driving available with PMOS IC output or with TTL output` Wide operating temperature range (Ta = 20 to +75°C)` Output current-s...

product image

M54564P Picture
See larger image
SeekIC No. : 004405743 Detail

M54564P: Features: ` High breakdown voltage (BVCEO 50V)`High-current driving (Io(max) = 500mA)` With output pulldown resistance (Driving available with fluorescent display tube)` Driving available with PMOS...

M54564P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M54564P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` High breakdown voltage (BVCEO 50V)
`High-current driving (Io(max) = 500mA)
` With output pulldown resistance (Driving available with fluorescent display tube)
` Driving available with PMOS IC output or with TTL output
` Wide operating temperature range (Ta = 20 to +75°C)
` Output current-sourcing type




Application

Drives of relays, printers, LEDs, fluorescent display tubes and lamps, and interfaces between MOS-bipolar logic systems and relays, solenoids, or small motors






Pinout

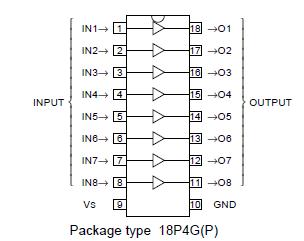

Connection Diagram




Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VCEO
Collector-emitter voltage Output, L
0.5 ~+50
V
VS
 Supply voltage
50
W
VI
 Input voltage
0.5 ~ +30
V
IO
 Output current Current per circuit output, H
500
mA
Pd
 Power dissipation Ta = 25°C, when mounted on board
1.79(P)/1.10(FP)
W
Topr
 Operating temperature
20 ~ +75
°C
Tstg
 Storage temperature
55 ~ +125
°C





Description

M54564P and M54564FP are eight-circuit output-sourcing Darlington transistor arrays. The circuits are made of PNP and NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low inputcurrent supply.
