Product Details

Description



Features:

` High breakdown voltage (BVCEO    40V)
` High-current driving (Ic(max) = 400mA)
`Driving available with PMOS IC output
`Wide operating temperature range (Ta = 20 to +75°C)


Application

Drives of relays and printers, digit drives of indication elements(LEDs and lamps), and MOS-bipolar logic IC interfaces

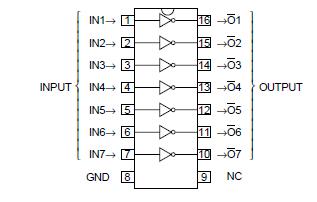

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
VCEO Collector-emitter voltage Output, H
-0.5to+40
V
Ic Collector current Current per circuit output, L
400
mA
VI Input voltage
-0.5to+40
V
1.47(P)/1.00(FP)
Pd Power dissipation Ta = 25°C, when mounted on board
W
Topr Operating temperature
20to +75
Tstg Storage temperature
-55to+125



Description

M54519P and M54519FP are seven-circuit Darlington transistor arrays. The circuits are made of NPN transistors. Both
the semiconductor integrated circuits perform high-current driving with extremely low input-current supply.
