M52790FP

Features: •Video and stereo sound switches in one package•Wide frequency range ( video switch )...........DC~20MHz•High separation ( video switch ). ................Crosstalk -60dB ( typ. ) at 1MHz•Two types of packages are provided : SDIP with a lead pitch of1.778mm ( M527...

product image

M52790FP Picture
See larger image
SeekIC No. : 004405584 Detail

M52790FP: Features: •Video and stereo sound switches in one package•Wide frequency range ( video switch )...........DC~20MHz•High separation ( video switch ). ................Crosstalk -60dB...

M52790FP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M52790FP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Video and stereo sound switches in one package
•Wide frequency range ( video switch )...........DC~20MHz
•High separation ( video switch )
.                        ................Crosstalk -60dB ( typ. ) at 1MHz
•Two types of packages are provided : SDIP with a lead pitch of
1.778mm ( M52790SP ) ; and SSOP with a lead pitch of 0.8mm
( M52790FP ) .


Application

Video equipment

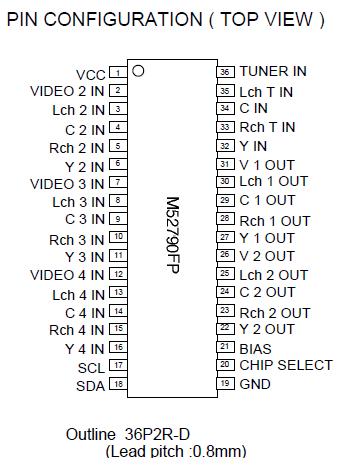

Pinout

Connection Diagram


Description

The M52790 is AV switch semiconductor integrated circuit with I2C bus control .

This IC M52790 contains 2-channels of 4-input audio switches and 2- channels of 4-input video switches. Each channel can be controled independently .

The video switches M52790 contain amplifiers can be controled a gain of output 0dB or 6dB .
