M52775FP

Features:

• AFT coil-less
• FM det coil-less
• Dynamic AGC
• AV switch (TV/EXT video)
• Y/C switch
• Built-in black stretch circuit
• Delay line aperture control
• Luminance peak limiter
• Two window vertical countdown
• Built-in chroma BPF and Trap
• Built-in Y Delay line
• Built-in ACC/Killer filters


Application

NTSC type color TV, projecter

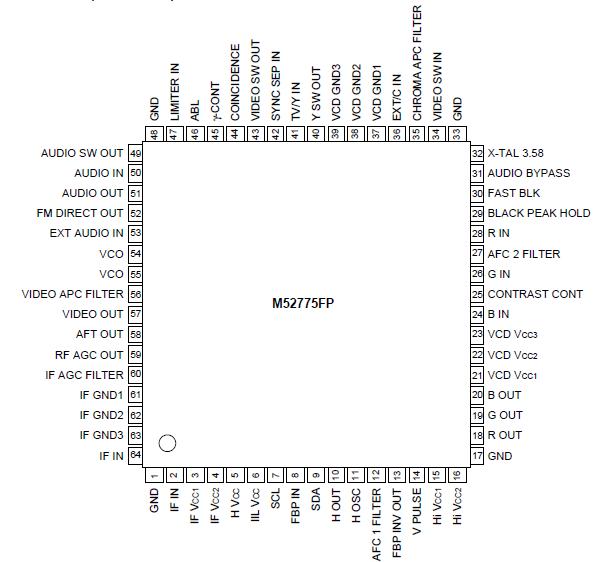

Pinout




Specifications

Symbol	Parameter		Ratings	Unit
VCC	Supply voltage		6.0, 9.0	V
Pd	Power dissipation		0.85	W
Topr	Operating temperature		-20 to +65	°C
Tstg	Storage temperature		-40 to +150	°C
Sarge	Storage temperature		±200	V

Description

The M52775FP is desinged to provide a solution to NTSC color television system. It is an I²C bus controlled NTSC 1 chip. It consists of various processing blocks such as video IF, sound IF, luminance, chrominance, mono-sound, OSD display, interface, H and V deflection. At each block, I²C control is possible and a total of 30 parameters can be controlled by I²C bus.
