Features:

• Built-in 1H Delay Line using Bi-CMOS technology
• Multistandard PLL demodulator for IF
• Alignment - free sound demodulator
• Flexible source selection with internal CVBS and external CVBS or Y/C input signal
• Audio switch integrated
• Integrated chroma trap and bandpass filters with auto-calibration
• Luminance delay line integrated
• RGB control circuit with cut-off and drive
• Linear RGB inputs and fast blanking
• Horizontal synchronaization with two control loops and alignmentfree H-oscillator
• Vertical count-down circuit
• Vertical saw tooth generator integrated
• I2C Bus control of various functions
• Easy interfacing with SECAM decoder for multistandard applications
• Small amount of peripheral components


Application

NTSC/PAL TELEVISION


Pinout

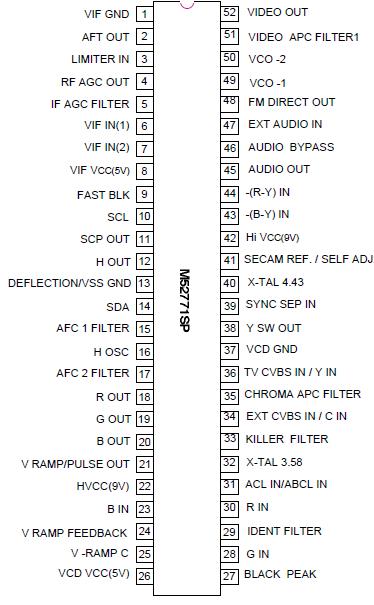

Connection Diagram


Specifications

Symbol Parameter
Ratings
Unit
VCC Supply voltage
0.0, 10.0
V
Pd Power dissipation
1690
mW
Kq Thermal derating
13.52
mW/°C
Topr Operating temperature
-20 to +65
°C
Sarge Storage temperature
-40 to +125
°C



Description

The M52771SP is a single chip CTV processor which has VIF/SIF, luminance, chrominance, mono sound, OSD display, RGB interface, and deflection.

And it is possible to control each parameters by I2C bus. A baseband 1H delay line is built-in, and conjunction with SECAM decoder M52325AP simplifies multi system CTV chassis.
