Product Details

Description



Features:

 ·Inter carrier /NTSC only(4.5MHz)
 ·Coil-less AFT.
 ·PLL FM demodulation for Audio. No external parts and adjustment.
 ·Video output is 2.0Vp-p through EQ AMP.
 ·Easy to add Buzz canceler.
 ·Hi speed IF AGC.
 ·Improve over modulation characteristics.


Application

TV,VTR

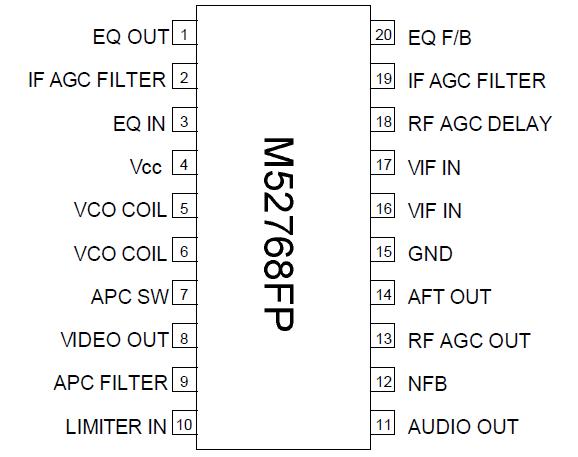

Pinout

Connection Diagram


Specifications

Symbol
parameter
Ratings
Unit
 Note
Vcc Supply Voltage 1
6.0
V

Pd Power Consumption
624
mW

Topr Operating Temperature
-20to+75

Tstg Storage temperatare
-40to+150




Description

M52768FP is a semiconductor integrated circuit consisting of VIF/SIF signal processing for CTVs and VCRs. M52768FP provide low cost and high performance system with the coil-less AFT.
