Product Details

Description



Features:


Dynamic AGC realizes high speed AGC with double filtre.
The M52766FP can correspond to 2tipe sound career,from change on standard board,with sound LIM input have 2pins (12,13pin).
Sound FM detection can correspond to wide SIF signal,with PLL system and no abjustment.
The N52766FP correspond to PLL split system and intercareer system.
AFT coil is necessary.
AFT mute is not used.
The M52766FP optimum for VTR and color TV,with video output-pin,because this IC has a built in EQ amplifier.
VCC correspond to 5V,be main strem of tuner in future. Flat package is 24-pin SSOP of mini flat (0.8mm pich ), suitable for space saving.


Application

TV sets, VTR tuners.


Pinout

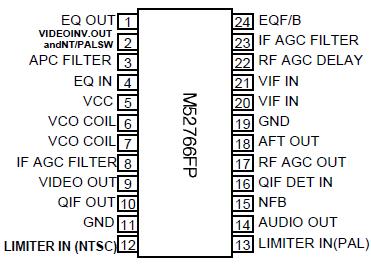

Connection Diagram


Specifications

Parameter
Symbol
Ratings
Unit
Note
Supply
Voltage 1
Vcc
6.0
V
Power
Consumption
Pd
1190
mW
Operating
Temperature
Topr
-20 ~ +75
ºC
Storage
Temperature
Tstg
-40 ~ +150
ºC
Surge voltage
resistance
Surge
±200
V
surge protection
capacitance 200pF
resistance 0



Description

The M52766FP is a semiconducttor IC with PLL system of VIF/ SIF.

The circuit includes video UF amplifier,PLL video detector,IFAGC,RFAGC,VCO,AFT,LOCK DET,EQ,REG,QIFamplifier,QIF detector,QIF AGC,LIM,FM detector function.

The M52766FP realize no abjustment SIF,nothing coil AFT.
