Product Details

Description

Features:

• It can control phase of horizontal wave.
• It can changes the parabola wave unbalance .
• It contains the horizontal saw wave generator and Auto Gain Control circuit , so that it is able to keep the amplitude
constant if frequency change.
• It can changes the parabola wave unbalance .
• Frequency Band Width: horizontal 24 to 120kHz
vertical 50 to 185Hz
• Input: horizontal 5Vp-p Pulse
vertical 3.2 Vp-p V Saw

Application

CRT Display Monitor

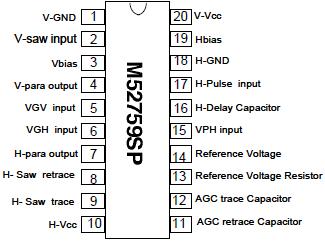

Pinout

Specifications

Symbol	Parameter	Min.	Typ	Max	Unit
Vcc	Supply voltage	-	-	13.0	V
Pd	Power dissipation	-	-	1237.6	mW
Topr	Operating temperature	-20	-	+85
Tstg	Storage temperature	-40	-	+150	V
Vopr	Recommended operating voltage	-	12.0	-	V
Vopr'	Recommended operating voltage range	11.5	-	12.5	V
Vsurge	Surge	±200	-	-	V

Description

M52759SP is Semiconductor Integrated Circuit for uniformity of CRT Display Monitor.It generates horizontal and vertical parabola waves and is able to revise contrast of CRT Display Monitor if it is used with Video Pre. Amp. 52742SP that has uniformity circuit .
