Features:

Frequency band : RGB 250MHz
                            HV 10Hz to 200kHz
Input lev el :       RGB 0.7Vp-p (ty p.)
                            HV TTL input 2.0Vo-p(both channel)
Only t he G channel is prov ided with sy nc-on v ideo output.The TTL f ormat is adopted f or HV output.


Application

Display monitor


Pinout

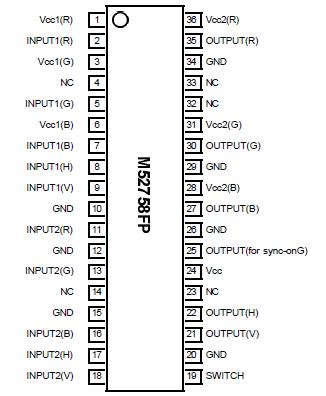

Connection Diagram




Specifications

Symbol Parameter Ratings Unit
Vcc Supply voltage
7.0
V
Pd Power dissipation
1068(FP)1603(SP)
mW
Topr Ambient temperature
-20to+85
Tstg Storage temperature
-40to+150
Vopr Recommended supply voltage
5.0
V
Vopr' Recommended supply voltage range
4.75to5.5
V
Surge Electrostatic discharge
±200
V



Description

The M52758 is a semiconductor integrated circuit f or the RGBHV interf ace. The dev ice f eatures switching signals input f rom two ty pes of image and outputting them to CRT display etc.Sy nchronous signal meeting the f requency band of 10 kHz to 200 kHz are output at TTL. The f requency band of v ideo signals is 250MHz, acquiring high-resolution images,and are optimum as an interf ace IC with high-resolution CRT display and v arious new media.
