Features:

• Frequency band:RGB......................................................250MHz
                             HV.............................................10Hz to 200kHz
  Input leve:RGB.........................................................0.7VP-P (typ.)
                 HV TTL input.............................3.5VO-P (both channel)
• Only the G channel is provided with sync-on video output.
• The TTL format is adopted for HV output.



Application

Display monitor


Pinout

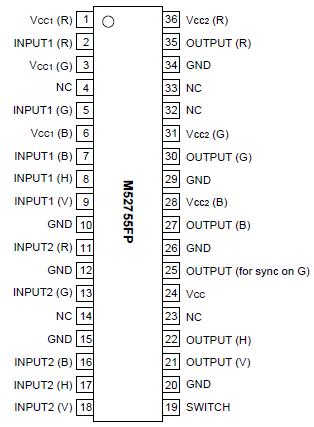

  Connection Diagram


Specifications

Symbol Parameter Ratings Unit
Vcc Supply voltage
7.0
V
Pd Power dissipation
1603
mW
Topr Ambient temperature
-20to+85
Tstg Storage temperature
-40to+150
Vopr Recommended supply voltage
5.0
V
Vopr' Recommended supply voltage range
4.5to5.5
V
Surge Electrostatic discharge
±200
V



Description

The M52755FP is a semiconductor integrated circuit for the RGBHV interface. The device features switching signals input from two types of image sources and outputting the signals to the CRT display, etc. Synchronous signals, meeting a frequency band of 10kHz to 200kHz, are output at TTL. The frequency band of video signals is 250MHz, acquiring high-resolution images, and are optimum as an interface IC with high-resolution CRT display and various new media.
