M52744SP

Features: • Frequency band width: RGB.............................150MHz (at -3dB) OSD..............................................80MHz Input :RGB.............................................................0.7VP-P (typ.) OSD..........................................3VP-P minimum (positive...

product image

M52744SP Picture
See larger image
SeekIC No. : 004405560 Detail

M52744SP: Features: • Frequency band width: RGB.............................150MHz (at -3dB) OSD..............................................80MHz Input :RGB...............................................

M52744SP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M52744SP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Frequency band width: RGB.............................150MHz (at -3dB)
                                        OSD..............................................80MHz
  Input :RGB.............................................................0.7VP-P (typ.)
            OSD..........................................3VP-P minimum (positive)
            BLK (for OSD)...........................3VP-P minimum (positive)
            Retrace BLK.............................3VP-P minimum (positive)
  Output :RGB...........................................................5.5VP-P (max.)
               OSD..............................................................5VP-P (max.)
• Main contrast and sub contrast can be controlled by I2C bus.
• Include internal and external pedestal clamp circuit.


Application

CRT display monitor


Pinout

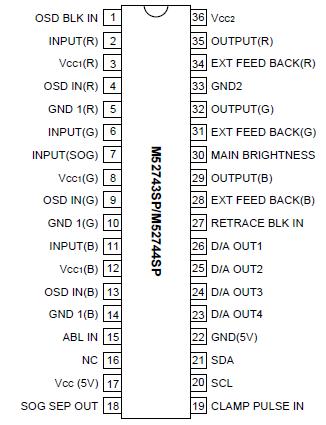

Connection Diagram


Specifications

Symbol
Parameter
Ratings
Unit
Vcc Supply voltage
13.0
V
Pd Power dissipation
2403
mW
Topr Ambient temperature
-20to+75
Tstg Recommended supply
-40to+150
Vopr Recommended supply
12.0
V
Vopr' voltage range
10.5to12.5
V
jc Case temperature
22
 °C/W



Description

M52743SP and M52744SP is semiconductor integrated circuit for CRT display monitor.

M52743SP and M52744SP includes OSD blanking, OSD mixing, retrace blanking, wide band amplifre, brightness control.

M52743SP and M52744SP Main/sub contrast and OSD adjust function can be controlled by I2C bus.
