M52739FP

Features:

1.Frequency  Band Width :  RGB  180MHz(at -3dB)
                                            OSD  80MHz
2.Input :RGB  Input D range:Max1VP-P positive 2 input routes is changed by IIC BUS  RGB OSD 3.5VP-P~5.0VP-P(positive)
3.Output  :OSD BLK  3.5VP-P~5.0VP-P(positive)    RGB 2.2VP-P (Max)    OSD  2.0VP-P (Max)
4.Contrast  :Output dynamic range  0.5~3.0V   It can drive 14pF
5.Brightness  :Both of sub and main contrast  are controlled by IIC Bus(8bit).Control Range :-15dB~+15dB.
6.OSD Adjust :Both of sub and main contrast  are controlled by IIC Bus(8bit).Control Range :0.5V~3.0V.
   2 Control Ranges (Max1VP-P or Max2VP-P ) are able to be changed by IIC Bus.

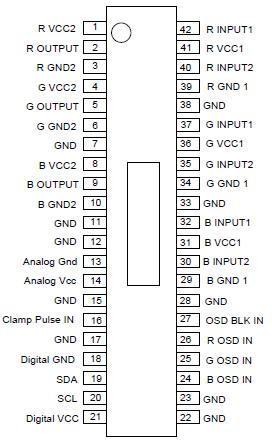

Pinout




Specifications

Symbol	Parameter	Ratings	Unit
Vcc	Supply voltage	6.0	V
Pd	Power dissipation	1700	mW
Topr	Ambient temperature	-20to+85
Tstg	Storage temperature	-40to+150
Vopr	Recommended supply	5.0	V
Vopr'	voltage range	4.7to5.3	V

Description

M52739FP is integrated Circuit for LCD Display Monitor.It is controlled IIC BUS and Band Wide is 180MHz.It includes OSD Blanking ,OSD Mixing,Wide Band

Amplifier,Main/Sub Contrast Main/Sub Brightness,and 2 Input routes.

Vcc Voltage is 5V and Flat package is used.then it is the suitable to LCD monitor.
