Features:

•Frequency band width: RGB................................130MHz (3VP-P)
    Input :RGB.............................................................0.7VP-P(typ.)
               BLK ...............................................3.0VP-Pmin. (positive)
   Output :RGB...........................................................4.0VP-P(max.)

•To adjust contrast, two types of controls are provided, main and sub.

With the main control, the contrast of the 3- channels can be changed simultaneously.

Sub controls are used to adjust thecontrast of a given channel individually.

The control terminals can be controlled by applying a voltage of 0 to 5V.

•The DC power remains stable at the IC output terminal becausea feedback circuit is built in.




Application

Display monitor


Pinout

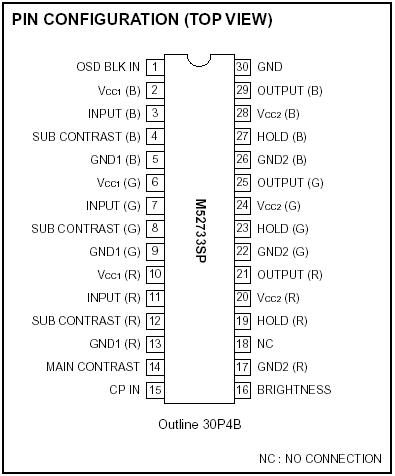

  Connection Diagram


Specifications

Symbol Parameter Ratings Unit
VCC Supply voltage 13.0 V
Pd Power dissipation 1736 mV
Topr Ambient temperature -20 to +85 °C
Tstg Storage temperature -40 to +150 °C
Vopr Recommended supply voltage 12.0 V
Vopr Recommended supply voltage range 11.5 to 12.5 V
Surge Electrostatic discharge ±200 V



Description

The M52733SP is a semiconductor integrated circuit amplifies video signals, having a 3-channel amplifier with a band width of 130MHz.

The circuit also features the OSD blanking function.

The M52733SP is most useful with high resolution displays that have OSD, and its function are available for each channel,including OSD blanking, wide-band amplification, contrast control (main and sub),and brightness control.
