M52732SP

Features: • It realize low power dissipation so that 3-channels are built in. (VCC=12V, ICC=63mA)• Input..........................................................................0.7VP-P (typ.) Output.....................................................................4.5VP-P (max.) Fre...

product image

M52732SP Picture
See larger image
SeekIC No. : 004405550 Detail

M52732SP: Features: • It realize low power dissipation so that 3-channels are built in. (VCC=12V, ICC=63mA)• Input..........................................................................0.7VP-P ...

M52732SP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M52732SP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• It realize low power dissipation so that 3-channels are built in.
   (VCC=12V, ICC=63mA)
• Input..........................................................................0.7VP-P (typ.)
   Output.....................................................................4.5VP-P (max.)
   Frequency band.................................................75MHz (at 3VP-P)
• To adjust contrast, two types of controls are provided, main and sub.
The main controls adjusts 3-channels of contrast concurrently.
The sub contrast controls adjusts either channel independentry.


Application

Display monitor


Pinout

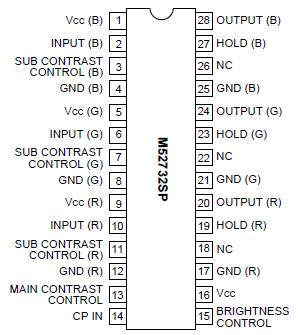

Connection Diagram


Specifications

Symbol
Parameter
Ratings
Unit
Vcc Supply voltage
13.0
V
Pd Power dissipation
1580
mW
Topr Ambient temperature
-20to+85
Tstg Storage temperature
-40to+150
Vopr Recommended supply voltage
12.0
V
Vopr' Recommended supply voltage range
11.5to12.5
V
Surge Electrostatic discharge
±200
V



Description

The M52732SP is a semiconductor integrated circuit that has 3-channels of built-in amplifiers in the broad-band video amplifier having a 75MHz band. Every channel is provided with a broad-band amplifier, contrast control (main and sub), and brightness control. It accordingly has an optimal configuration for use with high resolution color display monitors.
