M52727SP

Features: •Is capable of reading/writing data with the I2C bus control circuit.•Built-in AV-SW (with volume control) that is also available for Sinput•Complete and automatic identification of color signals and vertical synchronous frequencies of a TV system•Improvement in t...

product image

M52727SP Picture
See larger image
SeekIC No. : 004405549 Detail

M52727SP: Features: •Is capable of reading/writing data with the I2C bus control circuit.•Built-in AV-SW (with volume control) that is also available for Sinput•Complete and automatic identi...

M52727SP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M52727SP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Is capable of reading/writing data with the I2C bus control circuit.
•Built-in AV-SW (with volume control) that is also available for Sinput
•Complete and automatic identification of color signals and vertical synchronous frequencies of a TV system
•Improvement in the synchronization separation facility at the time of synchronous compression by auto slicer
•Built-in black expansion circuit
•Built-in vertical phase adjustment function
•Built-in two SW systems (ON/OFF by bus control)


Application

PAL/NTSC Type Color TV, Projecter


Pinout

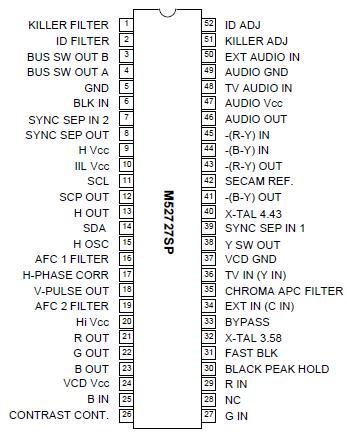

Connection Diagram


Specifications

Symbol
parameter
Ratings
Unit
Vcc Supply voltage
6.0,9.0,10.0
V
Pd Power dissipation
1.572
W
Topr Operating temperature
-20to+75
Tstg Storage temperatare
-40to+125
Surge Electrostatic discharge
±200
V



Description

The M52727SP is an I2C bus interface built-in semiconductor IC designed to process PAL/NTSC type image signals, color signals and deflection signals. Provided with a switch for both S input and AV, black extension function, etc., the M52727SP can meet a wide range of devices from diffusion machines to large screen TV sets.

The addition of SECAM chroma-decoder M52325AP will enable the M52727SP to completely and automatically identify the TV systems used all over the world.
