Features:

• Frequency band : RGB..................................................250MHz
                               HV.........................................10Hz to 200kHz
   Input level :        RGB..........................................0.7 VP-P (typ.)
                              HV TTL IN PUT
                               3 to 5 Vo-p (bipolar)
• Only the G channel is equipped with output for sync-on-video.
• HV output adopts TTL format.


Application

CRT display, TV, VCR, etc.


Pinout

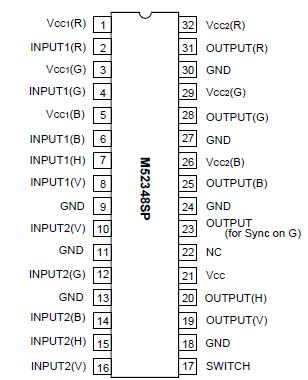

Connection Diagram


Specifications

Symbol Parameter Ratings Unit
Vcc Supply voltage
7.0
V
Pd Power dissipation
1603
mW
Topr Ambient temperature
-20to+85
Tstg Storage temperature
-40to+150
Vopr Recommended operating supply voltage
5.0
V
Vopr' Recommended operating supply voltage range
4.75to5.5
V
Sarge Electrostatic discharge
±200
V



Description

The M52348SP is an semiconductor IC for RGBHV interface that switches signals input from two types of image source and outputs them to CRT display etc. The synchronous signal meets the frequency band of 10 kHz to 200 kHz and is output with TTL. The IC adopts 250 MHz for the frequency band width of video signal,providing high resolution Images. It is optimum as an IC for interface with various types of new media including high resolution CRT.
