Product Details

Description



Features:

• Frequency band : RGB...................................................250MHz
                                HV..........................................10Hz to 200kHz
            Input level : RGB...........................................0.7 VP-P (typ.)
            HV TTL IN PUT
            3 to 5 Vo-p (bipolar)
• Only the G channel is equipped with output for sync-on-video.
• HV output adopts TTL format.


Application

CRT display, TV, VCR, etc.

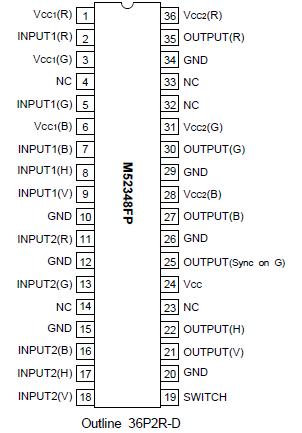

Pinout

Connection Diagram


Specifications

Symbol Parameter

Ratings

 Unit
VCC Supply voltage

7.0

 V
Pd Power dissipation

1603

 mW
Topr Operating temperature

-20 to +85

 °C
Tstg Storage temperature

-40 to +150

 °C



Description

The M52348FP is an semiconductor IC for RGBHV interface that switches signals input from two types of image source and outputs them to CRT display etc. The synchronous signal meets the frequency band of 10 kHz to 200 kHz and is output with TTL. The IC adopts 250 MHz for the frequency band width of video signal, providing high resolution images. It is optimum as an IC for interface with various types of new media including high resolution CRT.
