Features:

• Low power consumption with supply voltage of 5V
• Capable of obtaining output information on whether to input synchronous signal, and on polarity
• Output of clamp pulse
• Equipped with V TIME GATE SW that enables selecting whether or not VD portion pulse is output from pin 14/ 15.
• Equipped with CLAMP SW that enables switching the clamp pulse output position.


Application

Display monitor


Pinout

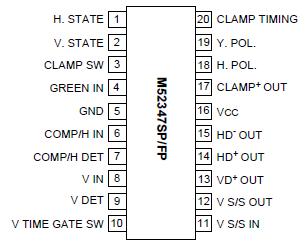

Connection Diagram


Specifications

Symbol
parameter
Ratings
Unit
Vcc Supply voltage
6.0
V
Pd Power dissipation
1237.6(SP),827.8(FP)
mW
Surge Electrostatic discharge
±200
V
Topr Operating temperature
-20to+75
Tstg Storage temperatare
-40to+125



Description

The M52347 automatically selects three types of synchronous signals containing separate sync (positive and negative polarities of 0.5 to 2.5 VP-P), composite sync (positive and negative polarities of 0.5 to 2.5 VP-P) and sync-on-video (sync negative polarity), and performs waveform shaping. The IC is optimum to synchronous signal processing for multi-scan type display monitor.
