M52340SP

Features: •A built-in I2C bus control circuit makes it possible to reduce the number of peripheral parts and rationalize production lines.•Various filters (TRAP, BPF, Y-DL, RGB clamp) are build in this IC.•PLL detection system is introduced to process video IF and voice IF. Furth...

product image

M52340SP Picture
See larger image
SeekIC No. : 004405530 Detail

M52340SP: Features: •A built-in I2C bus control circuit makes it possible to reduce the number of peripheral parts and rationalize production lines.•Various filters (TRAP, BPF, Y-DL, RGB clamp) ar...

M52340SP Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M52340SP
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•A built-in I2C bus control circuit makes it possible to reduce the number of peripheral parts and rationalize production lines.
•Various filters (TRAP, BPF, Y-DL, RGB clamp) are build in this IC.
•PLL detection system is introduced to process video IF and voice IF. Furthermore, AFT coil is not necessary.
•DL aperture control
•Color signal frequency and vertical frequency of TVs of every type can be discriminated fully automatically.
•Horizontal/vertical countdown system
•V-pulse output
•RGB output


Application

PAL/NTSC system color TV


Pinout

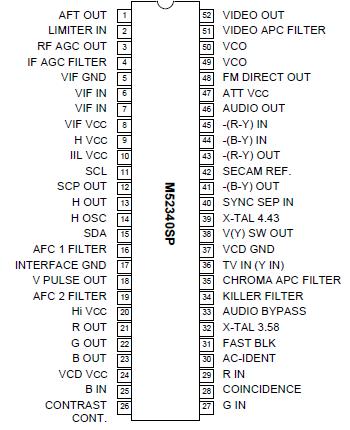

Connection Diagram


Specifications

Symbol
parameter
Ratings
Unit
Vcc Supply voltage
5.0,8.0
V
Pd Power dissipation
1.4
W
Topr Operating temperature
-20to+75
Tstg Storage temperatare
-40to+125
Surge Electrostatic discharge

±200
(-150 for only minus side of pin 18)
V



Description

The M52340SP is a single-chip semiconductor integrated circuit to process signals of a color TV. Circuits to process video IF, sound IF, video, color, and deflection signals, a I2C bus control circuit, and D/A are build in this device.

This M52340SP IC can be used not only for popular-type TV sets but also for middle-class TV sets. Combined with a SECAM chroma decoder,  the M52325AP, this device can process signals of every type of TVs in the world by discriminating them fully automatically.
