Product Details

Description

Features:

· ycorrection circuit is built in to correct non-linearity of luminance characteristics caused by applied voltage which is peculiar to a liquid crystal panel.
· By combining with Mitsubishi video/chroma signal processing ICs, M52042FP (NTSC) and M52045FP (PAL), low cost and optimal system configuration is possible.

Application

Active matrix liquid crystal color television

Pinout

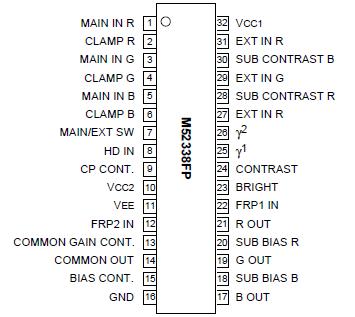

Connection Diagram

Specifications

Symbol	Parameter	Ratings	Unit
Vcc1	Supply voltage1	5.0	V
Vcc2	Supply voltage2	5.5	V
V_EE	Supply voltage3	-8.5	V
P_d	Power dissipation	580	mW
T_opr	Operating temperature	-20to+70
T_stg	Storage temperature	-55to+150
V_max	Electrostatic discharge	±200	V

Description

The M52338FP is a semiconductor integrated circuit containing an interface circuit which is necessary to drive an active matrix liquid crystal panel.
