M52335SP

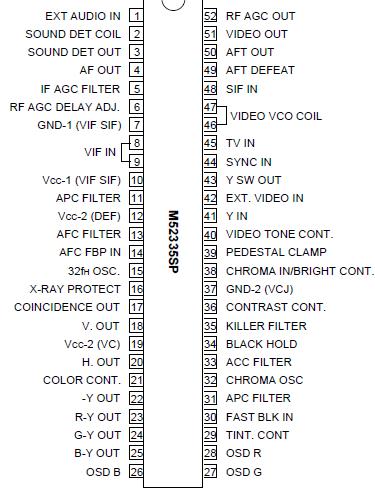

·Large-scale single-chip integration provides set rationalization,high reliability and less power dissipation.
·P LL-employed full sync detector circuit is used as a video detector circuit to improve characteristics such as DG, DP, 920kHz beat and cross color.
·A quadrature detector circuit is used as a sound IF FM detector to simplify external circuits and improve linearity.
·Coilless AFT.
·Horizontal oscillator is obtained by counting down from x32 horizontal frequency oscillator using a ceramic oscillator,
requiring no adjustment of horizontal free run frequency.
·Vertical oscillator is obtained by counting down double horizontal frequency oscillator generated by horizontal count-down,requiring no vertical sync adjustment. Using a 2-wind system provides high noise resistance capability.
·Double AFC is used as a horizontal circuit to reduce horizontal jitter in a weak electric field and screen distortion caused by luminance change.Also, the sync detector circuit allows use as a detector signal as for sound muting or automatic tuning.
·Built-in black expansion circuit
·Built-in Y-delay line circuit.
·Built-in on-screen character display circuit.DC voltage control is applied to picture quality, contrast,luminance, color saturation, tint and sound volume.

The M52335SP is a semiconductor integrated circuit thatintegrates NTSC system color TV signal processing functions into a single chip. It contains video IF, sound IF, picture, color, on-screen character display and deflection signal processing functions. Combining the IC with a simple output stage using a tuner and transistors provides rational NTSC system color TV set design.
