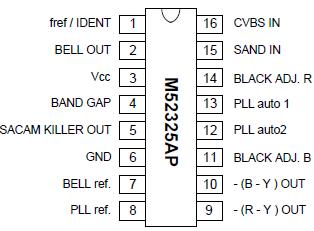

Features: • Fully integrated filters• No adjustment• Few external compornents• Used with a switched capacitor baseband delay lineApplicationSECAM Color TelevisionPinoutSpecifications SYMBOL PARAMTER MIN. MAX. UNIT Vcc positive power supply - ...
M52325AP: Features: • Fully integrated filters• No adjustment• Few external compornents• Used with a switched capacitor baseband delay lineApplicationSECAM Color TelevisionPinoutSpecif...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
SYMBOL |
PARAMTER |
MIN. |
MAX. |
UNIT |
Vcc |
positive power supply |
- |
11 |
V |
Pd |
total power dissipation |
- |
1.09 |
W |
Topr |
operating ambient temperature range |
-20 |
+75 |
|
Tstg |
storage temperature range |
-40 |
+125 |
|
Vsurge |
surge voltage |
±200 |
- |
V |
The M52325AP is designed for SECAM chrominance decoding.The IC should preferably be used in conjunction with PAL / NTSC signal processor M52340SP and the switched capacitor baseband delay line.
The M52325AP consists of a bell filter,a demodulator and an identification circuit. The IC needs no adjustment and few external
components are required. A signal with highly stable reference frequency is required for the calibration, and a three - level sandcastle pulse for blanking and burst gating.
