M51970L

Features: `Wide range of supply voltage................................................ 2.5 18V (-20 +75°C)`Variation coefficient of supply voltage......................... ........±0.1% standard (4 15V)`Load variation coefficient....................................................................

product image

M51970L Picture
See larger image
SeekIC No. : 004405496 Detail

M51970L: Features: `Wide range of supply voltage................................................ 2.5 18V (-20 +75°C)`Variation coefficient of supply voltage......................... ........±0.1% standard ...

M51970L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M51970L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Wide range of supply voltage................................................ 2.5 18V (-20 +75°C)
`Variation coefficient of supply voltage ......................... ........±0.1% standard (4 15V)
`Load variation coefficient .................................................................... ±0.1% standard
`Temperature coefficient of rotating speed ......±10 ppm/°C (standard) (-20 +75°C)
`The built-in over-shoot prevention circuit keeps the over-shoot low.
`DC drive system with minimum RFI


Application

Motor rotating control in the player, tape recorder, etc.


Pinout

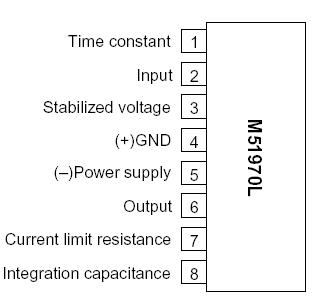

Connection Diagram


Specifications

Symbol
Parameter
Conditions
Ratings
Unit
Vcc Supply voltage   18 V
I Sink current into pin   40 mA
I Source current from pin   -3 mA
PdF Power dissipation With printed circuit board mounted (copper foil of 4.5 x 5.5cm in area, thickness of 35m, printed circuit board of 2.0mm in thickness) 550 mW
KQF Thermal derating   5.5 mW/
Topr Operating temperature   -20+75
Tstg Storage temperature   -40+125



Description

The M51970L is a semiconductor integrated circuit designed to control the motor rotating speed.

Connection of the rotating speed detector (F-G detector) to the input keeps the motor rotating speed constant with high precision. Connection of an appropriate power transistor to the output controls a wide range of DC motors.
