M48Z18

Features: INTEGRATED ULTRA LOW POWER SRAM, POWER-FAIL CONTROL CIRCUIT and BATTERY UNLIMITED WRITE CYCLES READ CYCLE TIME EQUALS WRITE CYCLE TIME AUTOMATIC POWER-FAIL CHIP DESELECT and WRITE PROTECTION WRITE PROTECT VOLTAGES (VPFD = Power-fail Deselect Voltage): M48Z08: 4.50V VPFD 4.75V M48Z18: ...

product image

M48Z18 Picture
See larger image
SeekIC No. : 004405404 Detail

M48Z18: Features: INTEGRATED ULTRA LOW POWER SRAM, POWER-FAIL CONTROL CIRCUIT and BATTERY UNLIMITED WRITE CYCLES READ CYCLE TIME EQUALS WRITE CYCLE TIME AUTOMATIC POWER-FAIL CHIP DESELECT and WRITE PROTECT...

M48Z18 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M48Z18
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

INTEGRATED ULTRA LOW POWER SRAM, POWER-FAIL CONTROL CIRCUIT and BATTERY
UNLIMITED WRITE CYCLES
READ CYCLE TIME EQUALS WRITE CYCLE TIME
AUTOMATIC POWER-FAIL CHIP DESELECT and WRITE PROTECTION
WRITE PROTECT VOLTAGES (VPFD = Power-fail Deselect Voltage):
    M48Z08: 4.50V VPFD 4.75V
    M48Z18: 4.20V VPFD 4.50V
SELF-CONTAINED BATTERY in the CAPHAT DIP PACKAGE PACKAGING INCLUDES a 28 LEAD SOIC and SNAPHAT® TOP (to be Ordered Separately)
SOIC PACKAGE PROVIDES DIRECT CONNECTION for a SNAPHAT TOP which CONTAINS the BATTERY
PIN and FUNCTION COMPATIBLE with the DS1225 and JEDEC STANDARD 8K x 8 SRAMs


Pinout

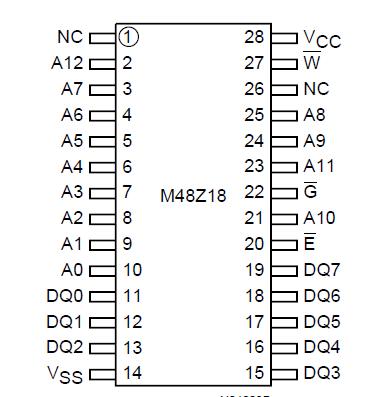

Connection Diagram




Specifications

Symbol
Parameter
Value
Unit
TA
 Ambient Operating Temperature
40 to 85
°C
TSTG
 Storage Temperature (VCC Off)
40 to 85
°C
TSLD(2)
 Lead Solder Temperature for 10 seconds
260
°C
VIO
 Input or Output Voltages
0.3 to 7
V
VCC
 Supply Voltage
0.3 to 7
V
IO
 Output Current
20
mA
PD
 Power Dissipation
1
W



Description

The M48Z08/18 ZEROPOWER® RAM is an 8K x 8 non-volatile static RAM which is pin and functional compatible with the DS1225. The monolithic chip is available in two special packages to provide a highly integrated battery backed-up memory solution.
