M48T212Y

PinoutSpecifications Symbol Parameter Value Unit TA Ambient Operating Temperature 0 to 70 °C TSTG Storage Temperature (VCC Off, Oscillator Off) SNAPHAT 40 to 85 °C SOIC 55 to 125 TSLD(2) Lead Solder Temperature for 10 seconds 260 °C V...

product image

M48T212Y Picture
See larger image
SeekIC No. : 004405364 Detail

M48T212Y: PinoutSpecifications Symbol Parameter Value Unit TA Ambient Operating Temperature 0 to 70 °C TSTG Storage Temperature (VCC Off, Oscillator Off) SNAPHAT 40 to 85...

M48T212Y Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
M48T212Y
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

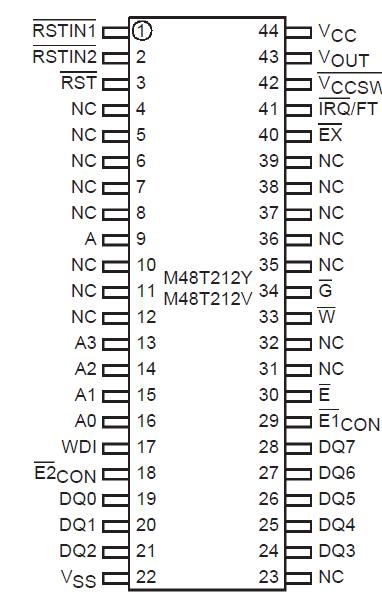

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
TA
 Ambient Operating Temperature
0 to 70
°C
TSTG
 Storage Temperature (VCC Off, Oscillator Off) SNAPHAT
40 to 85
°C
SOIC

55 to 125
TSLD(2)
 Lead Solder Temperature for 10 seconds
260
°C
VCC
 Supply Voltage M48T248Y
0.3 to 7.0
V
M48T248V
0.3 to 4.6
V
VIO
 Input or Output Voltages
0.3 to VCC +0.3
V
IO
 Output Current
20
mA
PD
 Power Dissipation
1
W



Description

The M48T212Y/V are self-contained devices that include a real time clock (RTC), programmable alarms, a watchdog timer, and two external chip enable outputs which provide control of up to four (two in parallel) external low-power static RAMs.

Access to all TIMEKEEPER®functions and the external RAM is the same as conventional bytewide SRAM. The 16 TIMEKEEPER Registers offer Century, Year, Month, Date, Day, Hour, Minute, Second, Calibration, Alarm, Watchdog, and Flags. Externally attached static RAMs are controlled by the M48T212Y/V via the E1CON and E2CON signals (see Table 4).

The 44 pin 330mil SOIC of M48T212Y/V provides sockets with gold plated contacts at both ends for direct connection to a separate SNAPHAT housing containing the battery and crystal. The unique design allows the SNAPHAT battery package to be mounted on top of the SOIC package after the completion of the surface mount process.
